Self-priming pump PT6YT

Self-priming pump PT6YT

COL$113,074,92053

Delivery not available to your location

This item cannot be shipped to your selected delivery location. Please choose a different delivery address or check other available sellers.

Additional details

Description

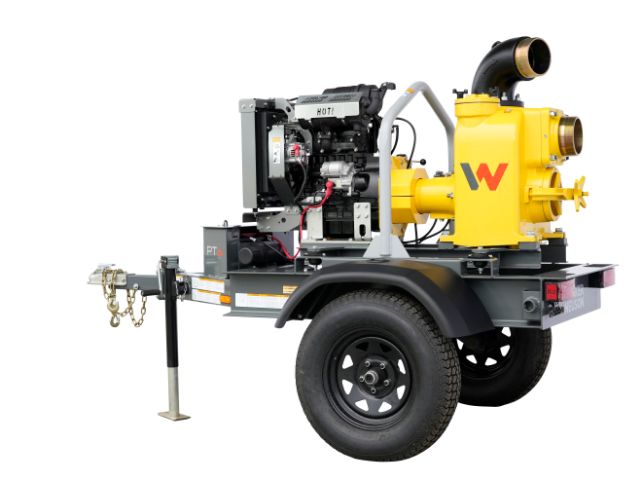

Self-Priming Pump PT6YT

The PT6YT self-priming pump is a centrifugal pump designed for demanding applications, offering high performance and durability. It is equipped with a robust Yanmar diesel engine, model 3TNV80F-NXDWN1, with electric start. The impeller is made of ductile cast iron, and the mechanical seals are composed of carbide and silicon submerged in oil, ensuring high wear resistance and a long service life with minimal maintenance.

Main Features:

  • Wear Plate with Wedges: Provides greater longevity and durability by compensating for impeller wear.
  • Quick-Action Cleaning Cover: Facilitates maintenance and cleaning of the pump in case of obstructions.
  • Central Lifting Point: Allows easy movement on the job site.
  • Powerful Yanmar Engine: Offers high performance and ease of maintenance.
  • Control Panel and Battery: Located at the front of the machine, with a removable cover for flexibility and safety.

Technical Data:

  • Maximum Pumping Height: 27 meters.
  • Maximum Pumping Flow: 4,304 liters per minute.
  • Maximum Pumping Pressure: 2.6 bar.
  • Maximum Solids Diameter: 50 mm.
  • Maximum Suction Height: 7.5 meters.
  • Dimensions (L x W x H): 2,155 x 1,491 x 1,714 mm.
  • Operational Weight: 870 kg.
  • Suction and Pressure Connection Diameter: 152 mm.
  • Fuel Tank Capacity: 90 liters.
  • Engine Speed: 2,700 rpm.
  • Fuel Consumption at 2,700 rpm: 5 liters per hour.
  • Autonomy at 2,700 rpm: 18 hours.

For more information or to consult the complete technical data sheet, visit the official Wacker Neuson website.
